Summary Highlights
- Separate the inductive VT or CVT from its connected fuse, cable and instrument circuits.
- Select applicable ratio, phase, burden and insulation measurements for the actual equipment.
- Record the voltage basis and distinguish device-terminal findings from remote input readings.
- Treat CVT capacitor-divider diagnostics as a separate, model-specific scope.
- Report tested branches, exclusions, reference conditions and restoration; a ratio result alone is not a complete health assessment.
Article Details
Voltage-transformer maintenance should answer two separate questions: what condition and performance were established for the identified VT/CVT, and which parts of its connected voltage circuit were actually checked? A loss of voltage at a relay input is not automatically a failed transformer. Equally, a satisfactory device ratio does not prove healthy insulation, correct fuse/wiring conditions or every connected protection function.
Start with the actual type, winding and concern
Identify manufacturer, model, asset or serial identity, inductive or capacitive construction, primary and each secondary rating, terminal marks, phase/winding basis, class, burden, frequency and relevant insulation data. Obtain the actual drawing and applicable instructions. Multi-secondary equipment requires the winding and circuit under assessment to be named; one result must not be assigned to all windings without evidence.
Define the reason for the work: commissioning, a revised relay or meter, changed wiring, abnormal indications, recurring fuse issues or a planned condition assessment. State the required outage and the selected device and circuit checks. Different concerns require different work packages, and not every listed diagnostic applies to every VT or CVT.
Safety, inspection and cleaning precede interpretation
A rated secondary voltage is not permission to touch the circuit. Short-circuiting a VT secondary is hazardous and can damage equipment. Qualified personnel must use the approved equipment and installation procedure for isolation, verification, grounding, test connections and prevention of unintended backfeed or operation. The secondary practices of a conventional CT must not be transferred to a VT.

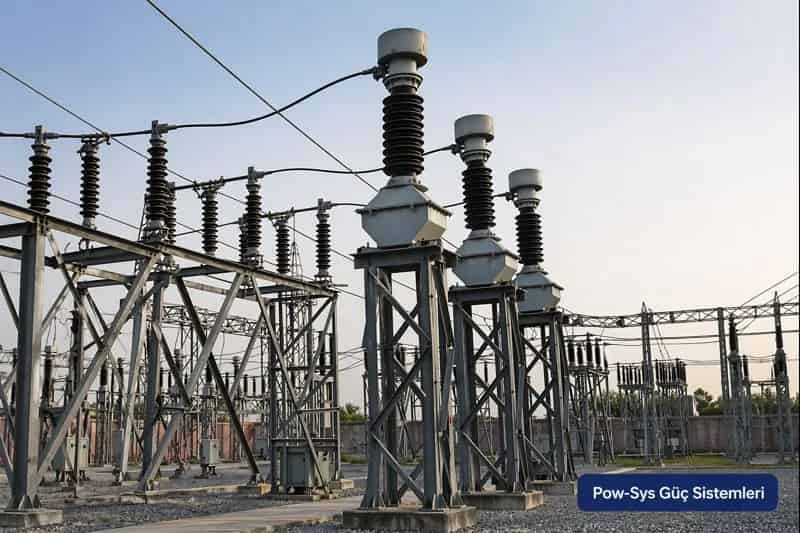

Record the observable condition of insulation surfaces, terminals, markings, supports and applicable oil/gas or fuse arrangements. Use the cleaning and mechanical-maintenance instructions for the exact construction. Cracks, contamination, leaks or discoloration can require investigation, but appearance alone does not identify an internal defect or replace electrical assessment. A clean surface does not establish complete dielectric health.

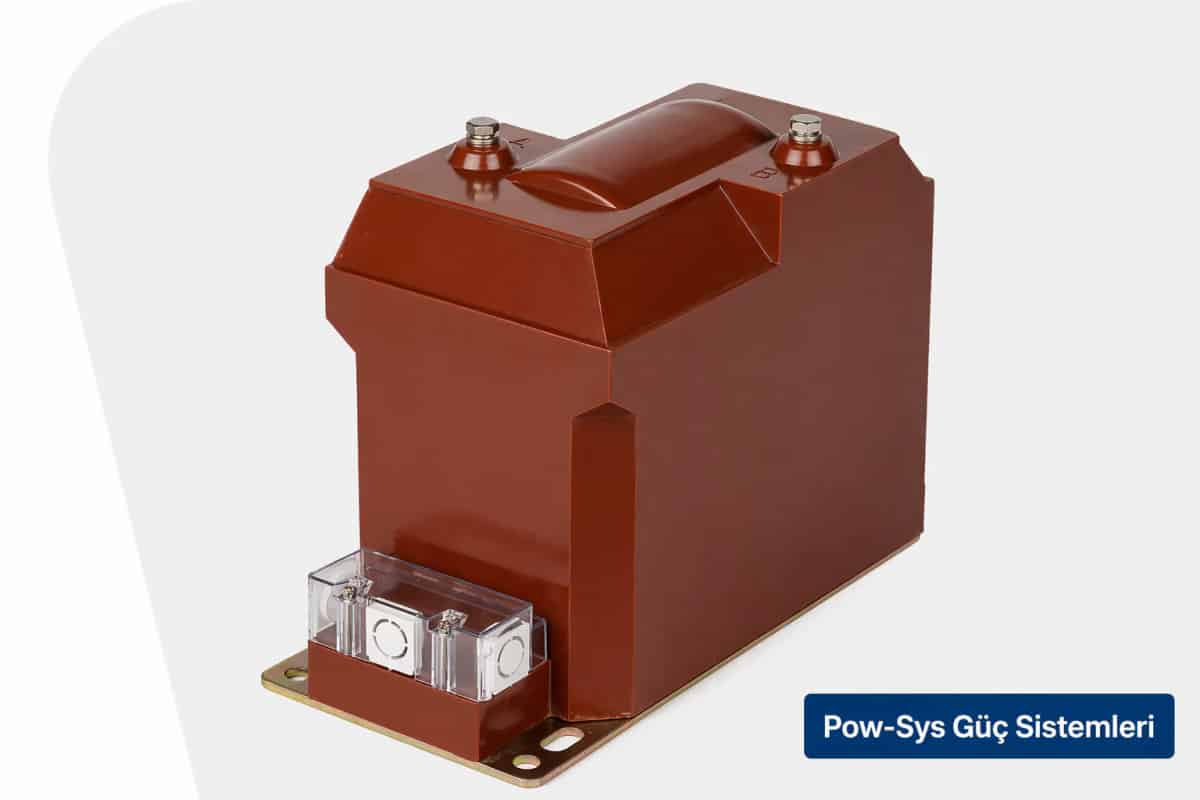

Which checks apply to an inductive VT or a CVT?
| Assessment | Useful scope | Boundary to record |
|---|---|---|
| Ratio, polarity and phase relationship | The identified winding and stated measurement arrangement | Test level, voltage basis, burden and method; not every operating point or remote branch |
| Connected burden and voltage-path checks | Devices, leads, terminals and selected instrument inputs | Which branches and terminal points were included |
| Winding resistance where applicable | Relevant winding/connections of the actual design | Terminal path, temperature, method and comparison reference; not a universal CVT primary-winding test |
| Insulation measurements | The insulation paths permitted by the equipment instructions and plan | Configuration, included/excluded equipment, conditions and applicable criteria |
| CVT capacitance and loss-factor assessment | Specified capacitive-divider sections and related model-specific checks | Connection/section, frequency, voltage, temperature and suitable baseline; not every possible defect |
| Functional voltage verification | The chosen voltage path and observed meter/relay functions | Injection or observation point, isolated/blocked circuits and excluded functions |
The table is a scope-selection guide, not a field procedure or a statement that Pow-Sys performs every method. Manufacturer requirements, asset condition and the agreed engineering scope determine applicability. Do not transfer power-transformer test voltages, percentages or acceptance limits to an instrument transformer because a search result uses the same word “transformer.”
Ratio, phase error and polarity are different quantities
Read the actual ratio and terminal pair on the specified phase-to-phase, phase-to-earth or other winding basis. A nominal system line voltage must not be substituted for the winding voltage without justification. Record the applied quantity, test method, connected or simulated burden and relevant frequency. A low-level ratio check does not automatically verify the full accuracy class over its required conditions.
Polarity and phase assignment relate the device terminals to the intended circuit. Phase displacement is another measured quantity; a percentage ratio error is not an angular error. A plausible voltage magnitude at one input does not establish correct phase relationships for directional protection or synchronism checking. State which observations were made at the device and which were made at the remote inputs.
Assess burden and the voltage seen at the instrument separately
The actual connected devices, leads and terminal paths influence performance. Record their load information on the same voltage basis, with power factor or impedance where relevant. Accuracy depends on the equipment’s specified conditions; a maximum VA number alone does not describe accuracy at every actual load, and minimum-burden assumptions must not be applied universally.
Cable and connection voltage drop can cause the instrument input to differ from the VT terminals. As a deliberately simplified hypothetical example, a current of 0.1 A through a purely resistive 1 Ω loop gives a 0.1 V drop. Relative to a stated 100 V measurement basis, that is 0.1%. It is an arithmetic illustration, not a VT acceptance limit or a site result; reactive load, phase relationships and the actual circuit require their own assessment.
The RITZ bulletin’s IEEE examples illustrate the importance of actual burden and power factor. They do not justify selecting every VT by “more VA is better,” “less load is always accurate,” or a fixed cable-distance rule. Device-terminal performance and total installed-circuit error should remain separate findings.
A missing voltage is not automatically a VT failure
Investigate according to the approved plan, considering the actual source, applicable primary and secondary protective devices, terminal paths, cables, instrument inputs and device configuration. A blown fuse or interruption can be associated with a downstream problem; replacing a fuse without establishing the cause is not a complete diagnosis. The presence of a primary fuse does not establish protection or continuity of every secondary branch.
| Hypothetical observation | What can be concluded | What still needs assessment |
|---|---|---|
| The selected VT terminal voltage is recorded but a remote input differs | The two recorded points differ under the stated conditions | The connecting path, load, phase basis, input settings and method; not an automatic winding diagnosis |
| One fuse or terminal path is interrupted | A discontinuity was identified in that path | Its cause, protection coordination and the condition of other branches |
| Device ratio is acceptable but dielectric results are abnormal | The ratio finding does not resolve the insulation concern | Suitable reference comparison and further model-specific investigation |
These examples describe the limits of report language, not measurements from a completed Pow-Sys inspection. An observed fault, its likely cause and an authorized corrective action are different statements.
CVT dielectric diagnostics need their own conditions
For applicable CVT designs, capacitance and dissipation-factor or power-factor measurements provide information about specified capacitor sections and insulation behavior. Record the actual connections, included components, applied voltage, frequency, temperature and comparison data. Different configurations or frequencies must not be treated as a directly comparable trend without assessing the difference.
An acceptable voltage ratio alone does not establish healthy dielectric insulation. Megger’s published CVT case discusses several complementary measurements, illustrating why one number cannot resolve every condition question. Its test settings, instruments and case thresholds are not universal VT/CVT limits or evidence of equipment owned by Pow-Sys. An abnormal change warrants investigation; the measurements do not guarantee early detection of every defect.
Winding resistance and insulation tests also depend on the real construction and permitted terminals. Do not describe the CVT divider as a conventional primary winding, or prescribe the same DC test to every VT/CVT. The equipment and test-system instructions determine applicable methods, limits and restoration.
State exactly which voltage path was verified
Primary-side voltage injection, indirect VT/CVT characterization and a connected-circuit voltage or phase check are different arrangements. The plan and report should identify the source or injection point, winding, tested terminal path, instrument inputs and functions actually observed. A test of the VT alone does not prove every relay branch, metering circuit or synchronism-check function.
Record blocks, isolated branches, simulated conditions and any function that was not exercised. Unintended backfeed and operation must be prevented under the approved procedure. After testing, restore and verify the prescribed terminal, protective-device and grounding arrangement; record the completed restoration rather than assuming it from a successful measurement.
What belongs in the report and next maintenance plan?
| Report field | Information to retain |
|---|---|
| Asset and winding | Identity, type, terminals, ratio and phase/winding basis |
| Agreed scope | Concern, included device/circuits and excluded functions |
| Measurement context | Method, instrument/reference information, applied conditions and relevant burden/temperature |
| Results | Measured quantities and units, appropriate reference and comparison conditions |
| Interpretation | Observation, supported conclusion, uncertainty/limitations and required follow-up |
| Restoration | The approved arrangement restored and checks actually completed |
| Next assessment | Condition history, manufacturer requirements, environment, criticality and applicable installation obligations |
A field maintenance record, accuracy calibration and statutory inspection are different scopes. Do not label a ratio-only check as accredited calibration or a completed installation inspection. Choose maintenance timing from the actual equipment and installation requirements rather than one universal period. For a testing enquiry, provide the nameplate, drawing, connected devices, symptom or change and available outage so the deliverables can be defined.
Technical references and their limits
The RITZ VT burden bulletin gives scoped accuracy examples. Megger’s September 2026 CVT case summary distinguishes a satisfactory ratio from dielectric condition. The historical instrument-transformer calibration paper discusses reference comparison and measurement conditions. These references do not establish universal settings, current local statutory intervals or Pow-Sys calibration accreditation.
