Insulator Testing, Inspection and Maintenance

Insulator maintenance combines inspection of the body and hardware, assessment of contamination and mechanical damage, and appropriate cleaning or further diagnostics where required. The work depends on the material, insulator function, installed design and conditions. One test voltage, resistance threshold, washing method or replacement age cannot be applied to every porcelain, glass and composite insulator.

Start with the equipment identity and purpose: manufacturer and type, material, voltage information, support or suspension/tension duty, fittings and mounting. An insulator's electrical role and the mechanical load path need consideration together. The insulator types and applications guide explains the basic distinctions.

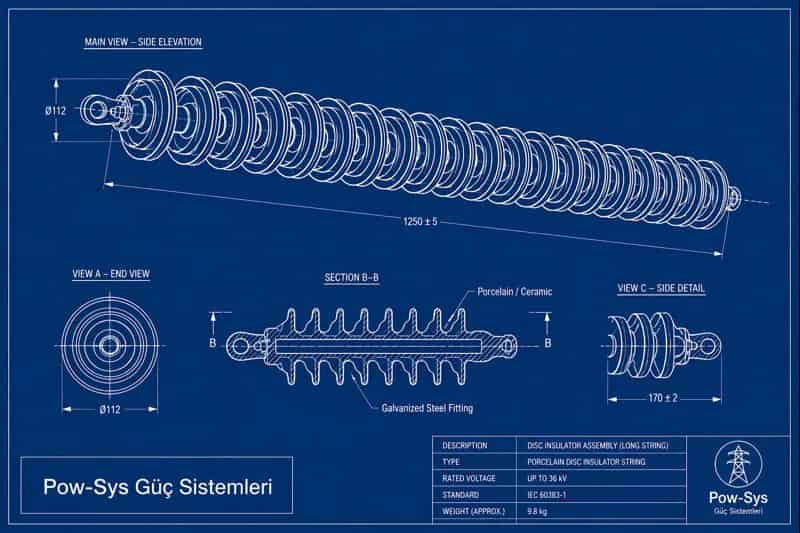

What changes between porcelain, glass and composite insulators?

Location, extent, progression and the relationship to load-bearing parts matter. A glaze mark and a structural crack are different findings, as are surface chalking and an exposed composite core. A small-looking defect is not necessarily insignificant. Neither can every internal or mechanical failure be assumed to provide a gradual visible warning.

Distinguish flashover from puncture before deciding on reuse

Flashover concerns a discharge path outside the solid dielectric, through the surrounding air and surface region. Puncture involves electrical breakdown through the solid insulation. Interpret evidence from an event with operating records, protection records and an equipment inspection. An external discharge is not automatically free of permanent damage.

Cleaning an arc-affected surface does not repair internal puncture, structural cracking, erosion or a damaged interface. Reuse must not be decided from a clean appearance alone. Determine the necessary assessment from the actual product, event and utility criteria; there is no universal flashover-to-puncture voltage ratio for field maintenance.

Contamination and wetting conditions belong in the same record

Salt, industrial deposits, dust and other contaminants can affect surface behaviour when combined with wetting. Leakage current, local drying, dry-band formation and discharge activity may be related. The appearance of a dry surface does not directly measure its behaviour during fog or rain.

Consider the distribution and source of deposits, the limits of natural rain washing and previous service events. Where appropriate, methods such as equivalent salt deposit density and non-soluble deposit density assessment can support investigation. Sampling and evaluation procedures must be defined; these terms do not provide a universal cleaning threshold or interval for every product.

What hydrophobicity assessment can establish

Hydrophobicity describes surface wetting behaviour. On relevant composite housings, particularly silicone-based materials, observations of droplets and water-film formation can contribute to condition assessment. Record the method, inspected zone, contamination or cleaned condition, environment and observation timing. Results from different methods should not automatically be treated as the same acceptance scale.

A water-repellent surface does not prove that the core, end fitting or internal interfaces are intact. Reduced hydrophobicity alone is also not an automatic replacement criterion for every product. Recovery behaviour depends on the material and condition; it cannot be guaranteed after every form of ageing or damage. A description of a wetting assessment does not authorize spraying energized equipment.

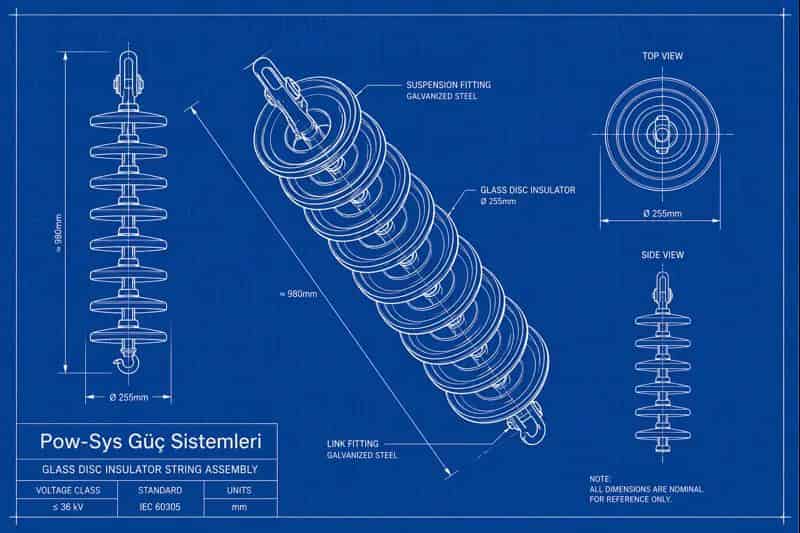

Use thermal, UV and leakage-current methods within their limits

Thermography records surface-temperature patterns. UV imaging can record discharge activity under suitable conditions. Leakage-current measurement records electrical behaviour in a defined measurement path. The methods can complement each other, but none is a complete health test for every insulator material and failure mode.

For thermal results, retain load, ambient conditions, wind, emissivity, reflected radiation and viewing geometry. For UV records, retain instrument settings, distance, geometry and environmental conditions. One temperature difference or photon count cannot be made a universal rejection threshold. Absence of visible corona does not prove absence of leakage current or other defects.

When comparing phases or similar units, check that product type and duty, load, environment, viewing geometry and measurement settings are comparable. A difference alone is not a fault diagnosis or replacement decision.

A leakage-current record needs the wetting and contamination conditions, applied voltage, measurement arrangement, bandwidth and reported quantity. Peak current, RMS current and a thresholded pulse count are not interchangeable. Zero counted pulses can mean that events did not meet the counter's detection conditions; it does not establish zero current. Preserve differences between site visits rather than presenting unlike conditions as a direct trend.

Insulation resistance and laboratory tests have different purposes

Select any insulation-resistance test, voltage, duration, connection and criterion from the approved procedure for the actual product. Contamination, moisture, temperature and the measurement path can affect the result. A high resistance value does not exclude every internal crack, mechanical weakness or pollution-performance problem. A generic low-voltage installation limit is not an outdoor HV insulator acceptance rule.

Design, type, sample, routine and delivery acceptance tests have different purposes. Mechanical failure, puncture, porosity and artificial-pollution laboratory tests are not a list to apply to installed equipment at every maintenance visit. A removed specimen's result also needs its sampling and test boundaries; it cannot automatically represent an entire line or manufacturing population.

Plan cleaning and hardware work for the actual assembly

Base cleaning on the deposit, product and coating condition, history, and manufacturer and utility instructions. It is not an obligatory operation at every inspection. Unsuitable chemicals, abrasion or pressure can damage housings, coatings and seals. Removing contamination and correcting structural damage are separate activities.

Approved remote observation must be separated from touching, washing, retightening, dismantling or connecting test equipment. Physical intervention belongs within the authorized work plan, isolation, absence-of-voltage verification and required earthing arrangements. A product's pressure-water test does not establish a live-washing permission, nozzle setting or site water requirement.

Inspect caps, pins, locking hardware, fittings, flanges and supports. Record corrosion, section loss, displacement and abnormal load transfer separately from body condition. Torque, grading-ring position and component compatibility must follow the actual design and instructions rather than being inferred from a photograph. Busbar movement and support condition may be relevant to the same investigation.

Make the next action explicit: monitoring, investigation or replacement

Structural cracks, exposed composite core, end-fitting separation or serious deterioration of load-bearing hardware need prompt authorized engineering assessment. The operating precautions and return-to-service decision depend on the actual damage and site risk. This overview does not establish a universal broken-area percentage, age, temperature or resistance ratio for replacement.

For an uncertain finding, distinguish closer monitoring, suitable further diagnostics, analysis of removed samples and replacement, stating why an option is proposed. Age and failure history can support prioritization; age alone is not an automatic retirement rule for every product. A cleaned surface or a satisfactory result from another method does not eliminate an unresolved mechanical defect.

A maintenance report should preserve the basis of the decision

• Identify the insulator, material, duty, location, mounting and document revision.
• State the event or maintenance reason, date, environmental and operating conditions.
• Locate and describe each finding, with photographs and an appropriate history comparison.
• Identify the method, instrument, measured quantity, settings and evaluation criterion.
• Separate initial condition, cleaning or intervention, and subsequent checks.
• Record inaccessible areas, unresolved concerns, priority and the reason for follow-up or replacement.

For example, leakage-current records from a damp day and a dry day should not be presented as measurements under identical conditions. A scope statement such as “surface cleaned; internal condition and residual mechanical strength not tested” explains the work. This is an illustrative reporting example, not a customer result or an all-tests-passed statement.

TEDAŞ-MLZ/2017-067, Composite Silicone Post Insulators (August 2017, Turkish) and TEİAŞ 2005-017.3, composite suspension, tension and jumper insulators are primary examples of product and procurement requirements. Design-life, guarantee and product-test provisions are not universal field-maintenance intervals or live-working instructions. The applicable installed-product maintenance and cleaning documents remain necessary.

Equipment labels, mounting photographs, manufacturer documents, event history and previous reports help define an asset-specific scope. Where support structures and electrical duty need assessment together, these can inform an HV installations engineering and consultancy enquiry.
