Summary Highlights
- Importance of OLTC maintenance: preserving voltage regulation safety, reducing fault risk and supporting transformer continuity
- Basic maintenance steps: visual inspection and review of motor-drive mechanism, position indicator, auxiliary contacts and protective elements
- Main checks to be performed: diverter/selector section, transition behavior, oil compartment, pressure relay and connection systems
- Advanced diagnostic methods: dynamic resistance measurement, operating current-time behavior, vibro-acoustic assessment and operation counter tracking
- Recording and trend tracking: maintenance interval, tap-change count, oil condition, mechanical behavior and comparison with previous tests
Article Details
OLTCs are among the most critical subsystems that allow a transformer to regulate voltage by changing taps under load. Therefore, the tests and maintenance required for OLTCs should not be seen as an auxiliary maintenance task. The main purpose is to ensure that the transformer can maintain voltage adjustment safely, that tap transitions operate properly and that signs of wear or deterioration are noticed before a fault occurs. Because while the main transformer body operates largely statically, the OLTC is a dynamic system that performs mechanical movement and switching. For related context, see What Is an OLTC? What Does It Do, How Does It Work and For What Purpose Is It Used?.
The first step of maintenance is always safety. Before working on an OLTC, the transformer and related auxiliary systems must be made safe according to the manufacturer's procedure. The local-remote position, supply, mechanical locks and protective circuits, if present, of the motor-drive mechanism should be checked. Especially when working on the OLTC and motor-drive system, the risk of an incomplete tap change, incorrect position information or unintended movement should be considered. Therefore, OLTC maintenance cannot be treated like ordinary mechanical equipment maintenance. For related context, see What Is an MV XLPE Cable? What Does It Do, How Does It Work and What Structure Does It Have?.
Visual inspection is the basis of maintenance. The motor-drive cabinet, position indicator, auxiliary contact boxes, cable entries, sealing structures, rust-corrosion signs, possible oil leakage, protective relay connections and general surface condition should be inspected carefully. On motor-drive mechanisms operating outdoors, cover sealing and condensation risk are especially important. Because condensation can create problems over time in auxiliary contacts, terminals and control circuits. For related context, see What Is an MV Cable Termination? What Does It Do, How Does It Work and What Types Are There?.
The motor-drive mechanism is one of the most critical parts of OLTC maintenance. Its duty is to perform the selected tap change with correct movement and in the correct sequence. Therefore, the motor, gear system, shaft connections, mechanical adjustment, position indicator, operation counter and auxiliary contacts should be checked regularly. Manufacturer sources especially emphasize checking the motor-drive mechanism and lubricating required points. Mechanical stiffness or misadjustment here can cause the tap change to be completed incompletely or incorrectly. For related context, see What Is an RMU? What Does It Do, How Does It Work and What Parts Does It Include?.
Operation count is very important in OLTC maintenance. Because the life of this system often depends not only on calendar years, but also on how many tap changes it has performed. In some manufacturer manuals, the maintenance interval is defined by a specific number of operations or a specific year limit. Therefore, when preparing the maintenance plan, looking only at the annual calendar is not sufficient; the OLTC counter value should also be monitored regularly. In transformers that regulate intensively, operation count can increase very quickly and bring the maintenance need forward.

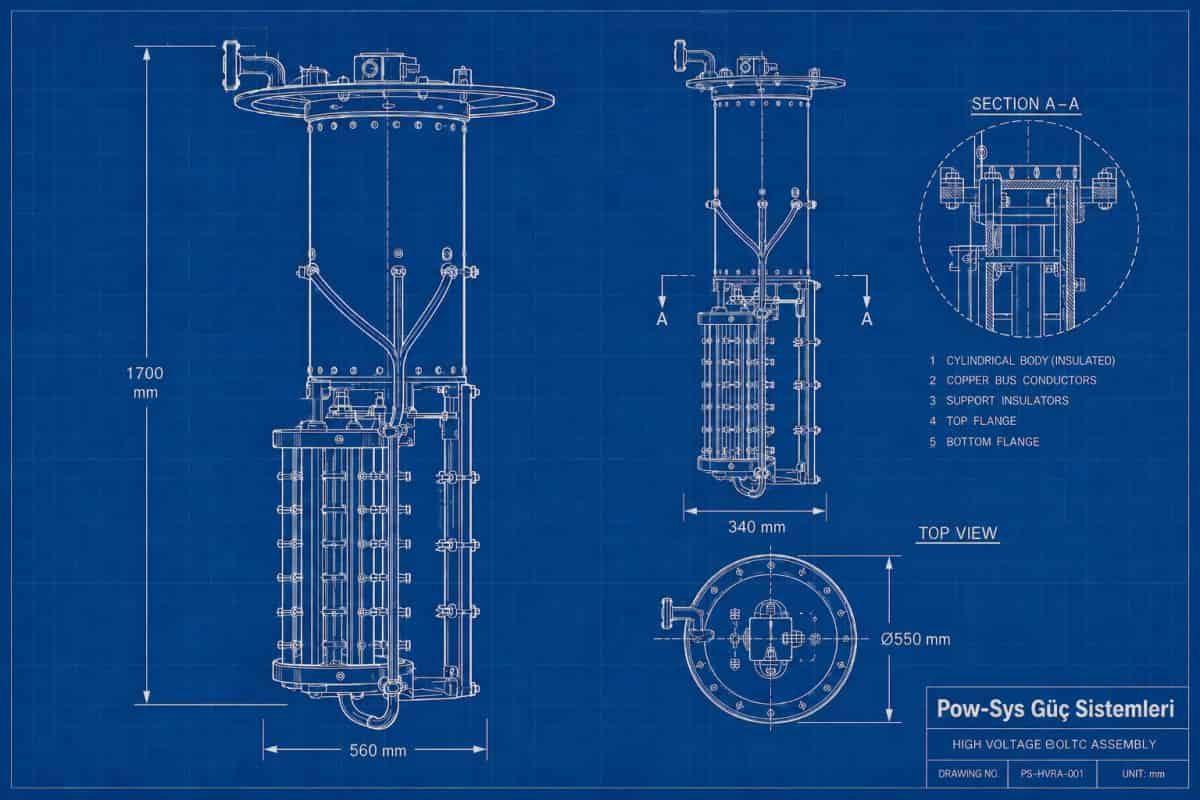

In conventional oil diverter type OLTCs, the diverter switch section requires separate attention. This section manages switching under current during tap transition and is naturally one of the parts exposed to the highest electrical stress. Contact wear, oil contamination, carbonization and deterioration in transition elements can affect performance over time. Therefore, in some maintenance manuals, diverter switch maintenance, oil cleaning and detailed inspection of the related compartment are listed among the main maintenance items.
The selector section should also be reviewed. Not every OLTC design is the same; in some structures the selector and switching section operate together, while in others they operate with a separate logic. However, the general principle is the same: the selector mechanism must determine the correct tap point safely. Mechanical misalignment, worn contacts or partial transition problems can cause tap change to position incorrectly. Therefore, the maintenance approach should focus not only on the external cabinet but also on the internal operating arrangement of the OLTC.
Oil health is an important maintenance subject on its own in oil-type OLTCs. It should not be forgotten that main transformer oil and OLTC oil may not always behave under the same conditions. Arcing and switching stress in the tap changer compartment can cause the related oil to become contaminated or age faster. Therefore, especially in designs with a separate oil compartment, oil level, oil condition, contamination indicators and oil analysis when required should be evaluated. Correct operation of protective elements such as pressure relay and minimum oil level should also be checked separately.
In vacuum technology OLTCs, the maintenance approach may be different. Some modern vacuum OLTC designs have much longer maintenance intervals, and some models may be offered with certain subsystems that do not require routine maintenance. However, this does not mean no checks will be performed. The motor-drive system, position accuracy, auxiliary contacts, counters and general operating behavior should still be monitored. In other words, even if technology changes, the need for supervision does not disappear; only the content of maintenance changes.
Protective elements and auxiliary circuits are inseparable parts of OLTC maintenance. Pressure relay, oil level alarm, position indicator, tap position signals, motor protective switch and circuits inside the control cabinet should be checked regularly. Because many OLTC faults can appear not only in the switching section but also in the auxiliary control chain. Consistency between the motor-drive and OLTC position information is especially important. Position mismatch means serious operating risk.
One of the strongest diagnostic methods that can be applied in OLTC maintenance is dynamic resistance measurement. Dynamic Resistance Measurement, or DRM, is used to examine the electrical behavior of the diverter/switching section during tap transition. This method allows defects such as interruption during transition, resistance change, contact wear, commutation resistor problems or mechanical synchronization issues to be understood more clearly. Classic static winding resistance measurement does not always show this transition behavior; therefore, DRM has a separate place in OLTC assessment.
Dynamic behavior can be monitored not only electrically, but also mechanically. In recent years, vibro-acoustic measurement approaches have come to the foreground in OLTC condition assessment. By evaluating the vibration and acoustic signature formed during tap transition, information can be obtained about mechanical problems. This method does not explain everything alone, but when used together with DRM, it offers deeper diagnostic capability. It is one of the important tools that strengthen condition-based maintenance, especially for critical transformers.
Field observations should not be underestimated in OLTC maintenance. Unusual sound during tap change, slow operation, voltage behavior deviating from expectation even though the position appears to change, excessive heating in the drive cabinet or auxiliary circuit alarms are early signs requiring detailed inspection. Especially if a protective device or Buchholz-type element has indicated an event, the OLTC and transformer should be evaluated together before the device is re-energized.
It is not correct to give one fixed interval for maintenance. Because OLTC technology, model structure, operating intensity and monitoring infrastructure can differ. In some conventional types, 50,000 or 100,000 operations and certain year intervals may be critical, while much longer intervals may be possible in some vacuum designs. Therefore, the correct approach is to take the manufacturer's maintenance manual as the basis, track operation count and evaluate condition monitoring data when necessary.
At the end of maintenance, all results should be recorded. Operation count, motor-drive observations, position accuracy, oil condition, protective element tests, DRM or vibro-acoustic findings, adjustments made and replaced parts should be entered into the maintenance history. Because OLTC faults often appear sudden, but behind them are signs that have been growing for a long time. If trend tracking is performed, contact wear, mechanical fatigue or auxiliary circuit weaknesses can be noticed before a fault occurs. In summary, the tests and maintenance required for OLTCs consist of visual inspection, motor-drive and position system inspection, diverter/selector side review, oil and protective element tracking, maintenance planning according to operation count and advanced diagnostic methods such as DRM and vibro-acoustic assessment when required carried out together. If OLTC-equipped transformers, voltage regulation, transformer maintenance planning and MV/HV operating safety in your facility will be evaluated together, transformer maintenance and testing, HV/MV testing, maintenance and repair and LV/MV/HV project design and consultancy services can support the technical decision process.
