Summary Highlights
- Choose tests from transformer design, operating history, the concern being investigated and the available outage.
- Separate oil analysis from electrical insulation tests, and factory routine tests from selected field diagnostics.
- Compare turns ratio and winding resistance against the correct tap, connection and recorded baseline conditions.
- Include cooling, bushings, tap changers and protection accessories where fitted; distinguish oil-filled and dry-type maintenance.
- Use findings, limitations and corrective-action records to decide what happens next; one satisfactory result does not prove complete transformer health.
Article Details
Transformer maintenance combines condition inspection, selected electrical tests and, for oil-filled equipment, suitable oil analysis. Its purpose is to support an engineering decision: continue the agreed monitoring programme, investigate a concern, carry out corrective work or obtain specialist assessment. A list of instruments is not a test plan. The transformer design, manufacturer instructions, previous results and the reason for the work determine which evidence is useful.
Start with the transformer and the decision
Record the equipment identity, power and voltage ratings, vector group, cooling arrangement, tap changer type and fitted accessories. Review factory and commissioning records, loading, previous trips, repairs, oil work and earlier test conditions. A routine service visit, a post-fault investigation and commissioning after transport ask different questions. Missing records are a limitation to resolve, not a reason to declare an unfamiliar reading satisfactory.
Inspection and testing require qualified personnel, an approved site work plan and equipment-specific instructions. Supply, isolation, stored energy, earthing, access and restoration arrangements must be controlled for the actual installation. A position indicator or a temperature display does not prove absence of voltage. This article explains test selection and interpretation; switching and test connections belong in the authorized work procedure.
Separate factory records, field tests and specialist work
Factory routine tests and field maintenance tests overlap in some measurements but serve different purposes and use different facilities. Loss, impedance, withstand, partial-discharge or other specialist work is not automatically repeated during every maintenance visit. Review the factory report first, then specify the field or specialist measurements justified by the concern. The 2021 Schneider Electric Trihal guide distinguishes its factory routine-test list from pre-commissioning checks; that distinction applies to the guide’s cast-resin product scope, not to a universal site checklist.
| Concern or work item | Possible evidence, where applicable | Interpretation boundary |
|---|---|---|
| Ratio or connection concern | Turns ratio, tap identity, vector-group/nameplate and commissioning records | Use the expected winding and phase relationship; a line-voltage ratio is not automatically a winding turns ratio. |
| Winding or tap-contact concern | Winding DC resistance with tap, connection, temperature and stable measurement conditions recorded | A phase difference alone does not identify a fault; compare suitable reference values and complementary evidence. |
| Insulation concern | Selected insulation resistance, capacitance or power-factor/tan-delta assessment | These methods measure different properties. Record the test circuit and conditions; one result does not certify all insulation. |
| Oil-filled transformer condition | Agreed oil-quality tests and, where justified, DGA or other specialist analysis | Sampling, method and history affect interpretation. Oil results do not replace electrical or accessory checks. |
| Temperature or cooling concern | Load history, safe visual/thermal observations and cooling/protection function checks | Surface temperature is not winding temperature or a diagnosis of the fault cause. |
Turns ratio, winding resistance and insulation tests
A turns-ratio result is compared with the nameplate, winding connection and the actual tap position. An unexpected result calls for verification of the test arrangement and equipment records before it is attributed to winding damage. Record which taps were examined; checking one position does not demonstrate the condition of every tap or the complete tap-changing mechanism.
Winding resistance helps assess the conducting path and connections, including tap contacts where the method applies. Temperature, winding connection, tap position and the measurement method matter when comparing results. Megger’s May 2015 winding-resistance Q&A explains why complementary diagnostics and controlled discharge/demagnetization matter. The qualified team must follow the test equipment and transformer instructions; a generic test-current or discharge recipe is inappropriate.
Insulation resistance, capacitance and power factor/tan-delta provide different evidence. Select the method for the transformer and bushing design, accessible test points and investigation. State temperature, humidity where relevant, the tested insulation path and any disconnected or excluded components. A satisfactory insulation-resistance reading does not establish that every dielectric, thermal or mechanical fault has been excluded.
Oil quality and DGA answer different questions
For oil-filled equipment, define sampling and analysis responsibilities and methods. DGA concerns dissolved gases; dielectric breakdown, moisture and acidity assess other oil properties. Megger’s DGA guidance combines gas trends/rates with operating conditions and distinguishes online monitoring from offline oil-quality tests. One alarm or result is not a complete diagnosis.
Sealed, conservator and other oil-system designs require different handling. The Sönmez oil-transformer guide, revision 8 dated November 2019 requires specific manufacturer advice for sampling its sealed corrugated-tank design. Identify the actual unit and applicable instructions before planning sampling or oil work. Oil filtration, regeneration and replacement are distinct interventions; improvement of an oil parameter is not proof that paper insulation or the entire transformer has been restored.

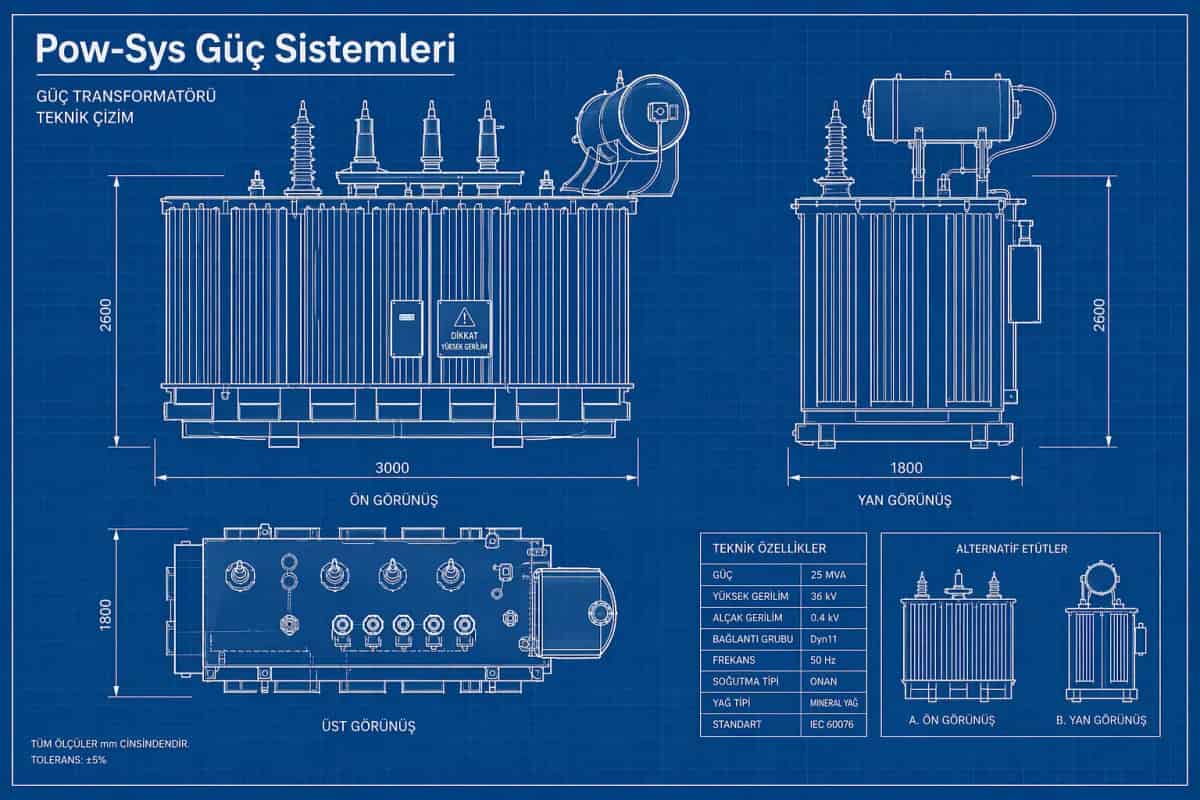

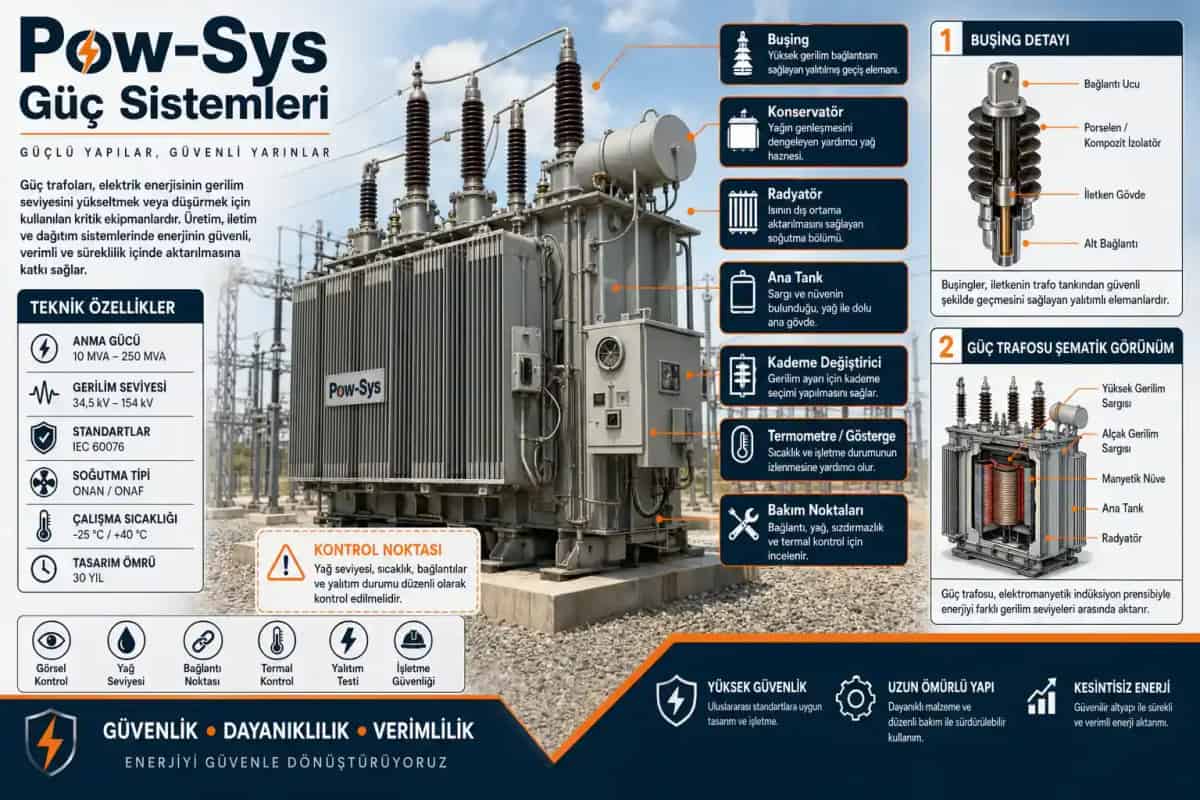

Bushings, tap changers, cooling and protection
Inspect bushing surfaces, visible damage, leakage where relevant and connection condition under the approved access arrangements. Capacitance or power-factor testing is appropriate only for suitable bushing designs and test provisions. A hot terminal can have several explanations; further evidence is needed before assigning the cause or deciding on replacement.
Where an on-load tap changer (OLTC) is fitted, identify its design and use its own manual to assess operation history, drive, position feedback, contacts and compartments. An off-circuit tap changer has different operating restrictions. Do not infer that a transformer ratio test proves OLTC switching performance, or apply one oil-type diverter maintenance method to every OLTC.
Cooling checks cover the actual radiators, fans, pumps, air paths and control supplies fitted to the transformer. Protection and indication checks may include temperature, pressure, oil level or Buchholz functions where provided. Record the tested alarm, trip and feedback endpoints. An indication at a controller is not proof that the entire trip chain or cooling system operated correctly.
Dry-type maintenance and thermal observations
Dry-type transformers have no transformer-oil system to sample. Their programme focuses on accessible insulation surfaces, contamination, ventilation, connections, temperature monitoring and fans where fitted, together with selected electrical tests. Cracks, discharge traces or persistent abnormal temperatures call for assessment under the applicable manufacturer instructions. Dry-type does not mean maintenance-free, and a cleaning method suitable for one insulation system may damage another.
Thermal inspection records safely visible surface temperatures under the actual load and environmental conditions. Compare like equipment with load, viewing conditions, reflections and emissivity considered. An anomaly guides investigation; it does not by itself prove looseness, increased contact resistance or an internal fault. Keep the inspection conditions with the images and confirm suspected causes by suitable checks.
From a finding to corrective action and closure
An abnormal noise, leakage, temperature indication or protection trip is a reason to review the condition and event history, not to force continued operation or repeatedly re-energize. The authorized team determines immediate restrictions and the need for manufacturer or specialist advice. Record what remains uncertain and which additional evidence is required.
Illustrative decision case: a dry-type transformer has recurring temperature alarms. The team first checks the recorded load, air-path condition, fan/temperature-control behaviour and the event history. A thermal image alone cannot distinguish restricted cooling from a sensor or electrical problem. Corrective work is followed by the relevant checks and recorded review of the remaining restrictions; no invented measured value or successful customer outcome is implied.
The report should identify the transformer, work performed, methods and instruments, actual conditions, comparison basis, results, exclusions, unresolved findings and recommendations. Give each corrective action an owner and follow-up requirement. Closure means that the relevant corrective work and verification are documented; it is not a guarantee against future failure. Keep results comparable over time, and select the next interval from manufacturer requirements, criticality, environment and findings.
For the complete facility’s switchgear, protection and auxiliary interfaces, see transformer-substation testing and maintenance. For an agreed equipment service, oil-analysis or repair proposal, see Bursa transformer maintenance and testing. Statutory transformer periodic inspection remains a separate scope and report.
Related Blog Posts
- What Is a Transformer? Operating Principle, Types and Applications
- What Is a Transformer Substation? What Does It Do, How Does It Work and Which Sections Does It Consist Of?
- What Tests and Maintenance Are Required in Transformer Substations?
- Transformer Operation Manager Duties: Actions, Records, Reports and Employer Follow-up
Related Services
Frequently Asked Questions
Why is maintenance required on transformers?
Maintenance helps identify deterioration and manage corrective work before the condition creates a larger operational problem. The programme combines appropriate inspections and tests with operating history and recorded follow-up; it does not guarantee that every future failure will be predicted.
Which tests are performed on transformers?
Select tests for the transformer design, concern, manufacturer instructions and available records. They may include turns ratio, winding resistance, suitable insulation or bushing assessments, cooling/protection checks and oil analysis for oil-filled units. Factory or specialist tests are not an automatic field-maintenance package.
Why is DGA important?
DGA supports assessment of oil-filled equipment. Interpret gas trends with operating/sample history and complementary evidence. One result does not establish complete health.
What does the ratio test show?
It compares the measured ratio with the expected winding relationship, connection and actual tap position. Check the measurement arrangement and reference records before attributing an unexpected result to a fault; one tested tap does not prove the entire tap-changing system.
Why is the winding resistance test performed?
It helps assess winding and connection paths, including tap contacts where applicable. Record temperature, tap, connection and measurement conditions and compare suitable baselines. It does not independently locate every internal defect or prove dielectric strength.
Why should bushings be checked separately?
Bushings can have visible surface or connection problems as well as internal insulation concerns. Select tests for the bushing design and available test points. A warmer terminal requires investigation under comparable conditions; the image alone does not identify looseness or another cause.
Why is OLTC maintenance critical?
An OLTC changes taps under load and has its own switching, mechanical and control duties. Follow its specific instructions and operation history. Ratio or winding-resistance measurements can support assessment but do not replace the relevant mechanism, control and switching checks.
Is maintenance different on dry-type transformers?
Yes. Dry-type maintenance addresses insulation surfaces, contamination, air circulation, connections and temperature-control equipment where fitted, with appropriate electrical tests. It has no transformer oil for DGA. Manufacturer-compatible methods and a condition-based interval still matter.
What does a thermal camera do on a transformer?
It records safely visible surface-temperature patterns under the inspection conditions. Load, environment, reflections and emissivity affect interpretation. A thermal anomaly guides further investigation and does not establish the fault cause or absence of voltage.
Why is record keeping important in transformer maintenance?
Comparable records show what changed and under which conditions. Keep identity, methods, taps, temperatures, loading, results, exclusions and corrective-action closure together. Trends support decisions; missing or incompatible records limit the conclusion rather than proving deterioration or health.
