What Is a High-Voltage Line? Components and How It Works

A high-voltage line is the physical transmission line that carries electrical energy over long distances from generation points to transformer substations and different grid nodes. It is energy transmission infrastructure that delivers large amounts of electrical power to distant points with low losses and in a safe way. Importantly, a high-voltage line is not made only of wires: it is an engineering system in which conductors, towers, insulators, fittings and protection elements such as the shield wire work together. The conductors carry the current, the towers or poles keep them at a safe distance from the ground and surrounding structures, and the insulators prevent line voltage from leaking to the tower body or ground. Together with defined safety clearances, these parts form the backbone section of the power grid between generation and distribution.

A high-voltage line transmits large amounts of electrical power efficiently and safely from generation points to transformer substations and other main points of the grid. The basic reason for its existence is efficiency: when electrical energy is transmitted at a higher voltage for the same power level, the current decreases, and as the current decreases, the I2R losses on the line decrease, so energy can be transmitted to more distant points more economically. This is why high-voltage transmission is the standard approach in the backbone systems established between power generation and final consumption points. The critical transition line between a power plant and the distribution system is often formed by these transmission lines, and as the distribution level is approached, the voltage is reduced at transformer substations before energy reaches end users.

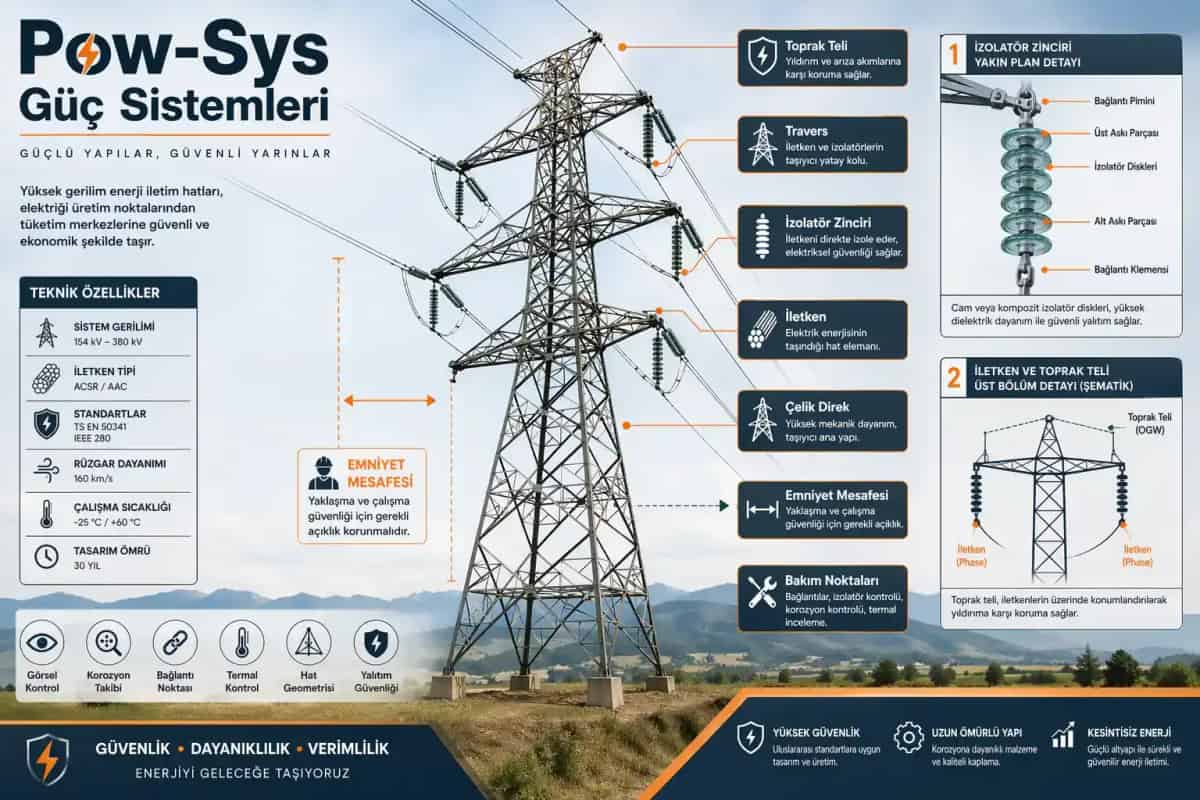

At the center of the system are the conductors, which carry the electrical current. Towers or poles keep the conductors elevated and at a safe distance from the ground and surrounding structures, and they provide sufficient clearance between phases. The conductors are not connected directly to the tower; insulators are placed between them, so line voltage is carried safely without leaking to the tower body or ground. Above the phase conductors, many lines include a ground wire or shield wire that helps protect the line against lightning impulses. Span length, conductor swing, sag amount and environmental clearances are all part of system safety, which is why a high-voltage line must be understood as a complete engineering system rather than simply as wires stretched between towers.

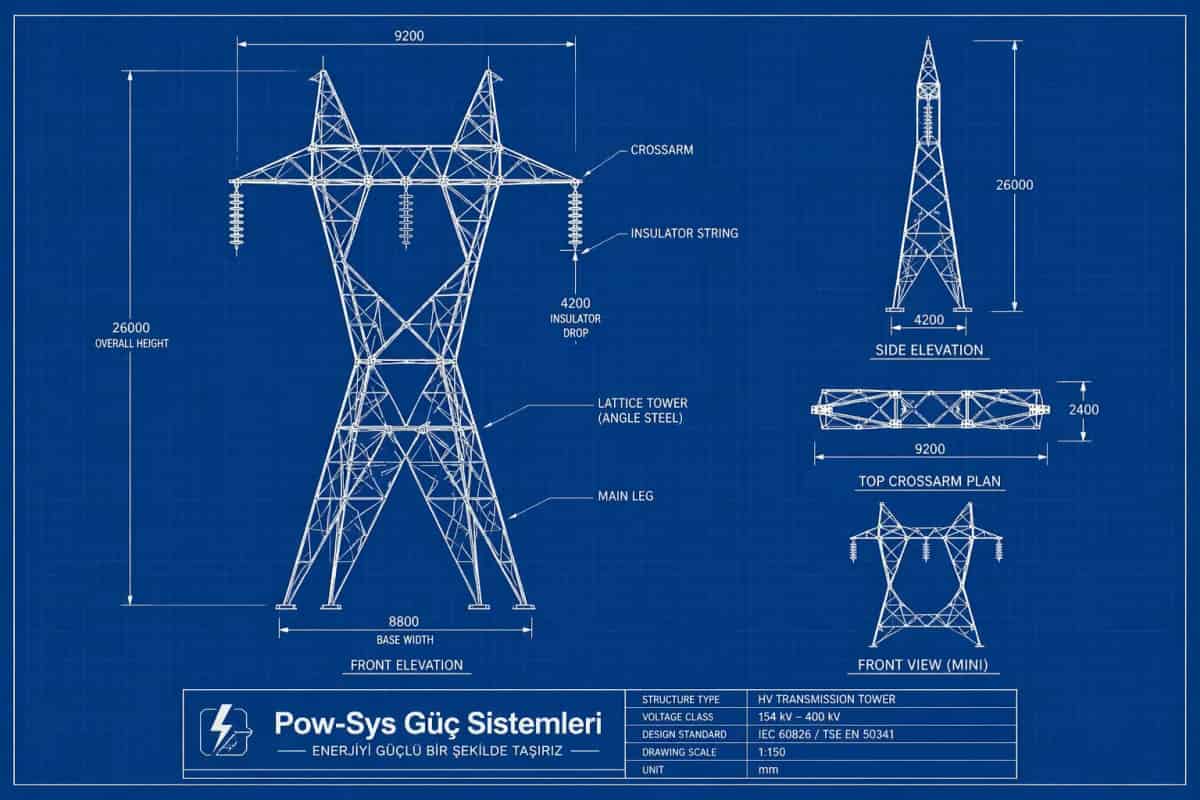

The main components are the conductors, the pole or tower structures, crossarms, insulator strings, the shield wire or ground wire, fittings and, in some applications, vibration dampers. The conductors are often selected from aluminum-based materials, with steel-reinforced structures used in some designs for extra mechanical strength. Towers keep the conductors elevated and maintain clearance between phases and toward the environment; as the voltage level increases, tower height, phase spacing and insulator dimensions may increase accordingly. Insulators electrically separate the energized conductors from the tower body while also carrying the mechanical load of the conductor. The shield wire above the phase conductors contributes to lightning protection. Because voltage level, terrain, span length and mechanical loads directly affect the design, not every high-voltage line looks the same.

The shield wire, also called the ground wire, is generally located above the phase conductors and helps protect the line against lightning impulses. The purpose is to cause lightning to strike this protective conductor instead of the phase conductors directly, and then to distribute the energy more controllably through the grounding system. In this way the phase conductors, which actually carry the transmitted power, are less exposed to direct lightning strikes. This protection approach is especially important in open terrain and on long lines, where exposure to lightning is higher. The shield wire is therefore one of the protection elements that work together with conductors, towers, insulators and fittings, and its condition should be monitored regularly as part of line maintenance, together with items such as tower foundations, insulator strings and vibration dampers.

Because as the voltage level increases, more insulation distance is required to keep the line safe. The duty of the insulators is to electrically separate the energized conductors from the tower or pole body while also carrying the mechanical load of the conductor. At higher voltages, both the air clearance and the creepage distance on the insulator become critical for safe insulation, so the insulator string usually becomes longer or stronger designs are used. This is also why tower height, phase spacing and insulator dimensions may all increase together as line voltage rises. On a high-voltage line the insulator is therefore not only an auxiliary part; it is one of the main elements of line safety, supporting the conductor mechanically while preventing the line voltage from leaking to the tower or ground.

Conductors never remain completely straight between two towers; they sag by a certain amount because of their own weight, temperature effects, wind and ice load. This makes sag a critical engineering topic in high-voltage lines rather than a defect. In line design, the minimum ground clearance, span length, maximum mechanical tension and environmental conditions are evaluated together so that the line keeps sufficient safety clearance under all expected conditions. A line calculated incorrectly may lose that clearance, which directly affects safety. The same reasoning influences conductor selection: a conductor does not only carry electricity, it must also withstand the mechanical stresses caused by wind, ice load, temperature change and long spans, so mechanical behavior is considered alongside current-carrying capacity when the line is engineered.

No, they are not the same, even though both carry energy. A high-voltage line is generally the main backbone system established to transmit larger powers over longer distances, forming the critical transition between power plants and the distribution system. As the distribution level is approached, the voltage is reduced at transformer substations, and energy is then distributed to residential areas through different infrastructure. Distribution lines therefore deliver energy closer to end users, while the high-voltage line represents the backbone section of the grid. The efficiency logic explains this division: transmitting at higher voltage reduces current and therefore the I2R losses over long distances, which is exactly what the backbone needs, whereas distribution operates at lower voltage levels suitable for delivering power into local networks.

Line conductors are often selected from aluminum-based materials, and in some designs steel-reinforced structures are used to increase mechanical strength. The selection is never based on electrical performance alone: a conductor does not only carry electricity, it must also withstand the mechanical stresses caused by wind, ice load, temperature change and long spans. This is why current-carrying capacity and mechanical behavior are considered together when a conductor is chosen. The mechanical side also connects directly to sag and clearance design, since the conductor's own weight and the environmental loads determine how much it sags between towers, and the line must keep its minimum ground clearance under all conditions. Conductor joints and their condition are also among the items monitored during regular line maintenance, together with towers, insulators and fittings.

Because towers, conductors, insulators, fittings and protection equipment may wear over time under environmental and mechanical effects, and small mechanical or electrical problems can turn into major outages. Regular monitoring should cover tower foundations, connection bolts, conductor joints, insulator strings, vibration dampers, the shield wire, corrosion condition, thermal behavior and the line corridor. In regions with intense environmental effects, the maintenance plan becomes even more critical. Maintenance is also tied to safety, since line safety is not limited to physical distances: approach distances below the line, construction rules, work limits with equipment, use of cranes and work machines, tree approach and maintenance procedures must be handled together. A correctly designed and properly maintained high-voltage line is indispensable for the continuity of the power system.

Electricity is transmitted at high voltage because of efficiency. When electrical energy is transmitted at a higher voltage for the same power level, the current decreases; as the current decreases, the I2R losses on the line decrease, and energy can be transmitted to more distant points more economically. This is why high-voltage transmission is the basic approach in the backbone systems established between power generation and final consumption points. The critical transition between a power plant and the distribution system is often formed by these transmission lines. Once the energy approaches the distribution level, the voltage is reduced at transformer substations and delivered to residential areas through separate infrastructure. Higher voltage does bring design consequences, however: tower height, phase spacing and insulator dimensions may increase accordingly, because safe insulation requires more distance.
