Summary Highlights
- An on-load tap changer adjusts transformer ratio without interrupting load, within its operating limits.
- A tap selector, diverter switch and combined selector switch describe different switching arrangements.
- Transition impedance and the current-interruption medium are separate design choices.
- A higher position number does not establish the direction of the regulated voltage change.
- Regulator delays, motor operating time and fast switching time are different quantities.
Article Details
An OLTC, or on-load tap changer, changes a transformer’s effective winding connection and ratio while the transformer is carrying load, within the equipment’s operating limits. It supports voltage regulation without requiring an outage for each tap adjustment. The ability to change taps in service does not authorize maintenance on energized equipment.
What does the OLTC control?
Changing the effective winding turns changes the transformer ratio. A suitable tap position can move voltage at the regulated point toward its target as supply and loading conditions vary. Adjustment is discrete and limited by the available tap range. An OLTC cannot correct every transient, voltage dip or power-quality problem.
Power transformers, some distribution transformers and special industrial transformers may use OLTCs where in-service ratio adjustment is needed. Transformer voltage class or MVA rating alone does not prove that an OLTC is fitted or required. The duty and the actual design matter.
How does a tap change transfer current?
Some arrangements use a separate tap selector and diverter switch. The selector preselects the next tap on the branch that is not carrying load current; the diverter then transfers the load current. A combined selector switch performs selection and current transfer in one switching arrangement. The names are not interchangeable descriptions of every model.

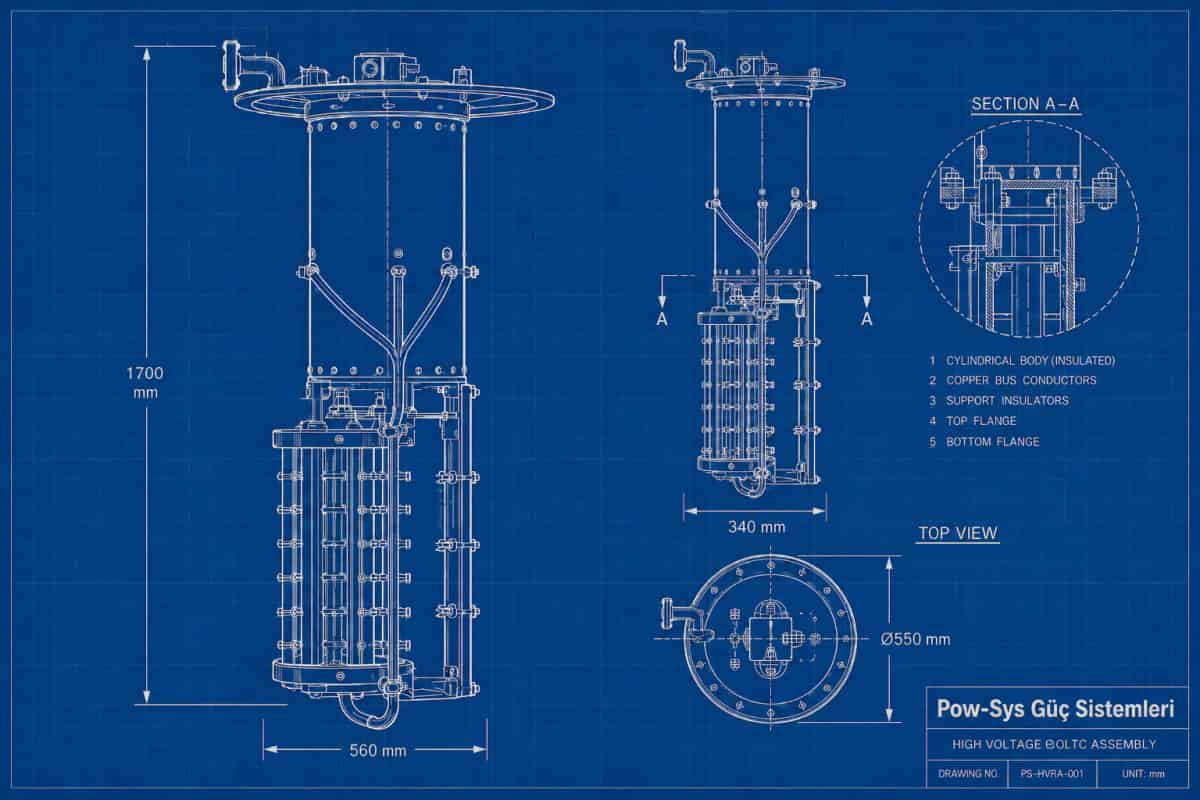

The motor drive moves the installed mechanism through shafts and gears. Position indication, auxiliary contacts and control equipment support the operation. A received command, motor motion and the instant of current transfer are different events. An unloaded selector branch is not evidence that the transformer is de-energized or safe to enter.
Resistor, reactor and vacuum: compare the right design features
| Design feature | Distinction | Why it matters |
|---|---|---|
| Selection and transfer arrangement | Separate tap selector/diverter versus combined selector switch. | The parts, switching sequence and interpretation of dynamic records differ. |
| Transition impedance | Resistor- or reactor-based current limitation. | The installed current path and operating arrangement must be identified. |
| Current-interruption medium | Arcing in oil or interruption within vacuum interrupters. | Oil duty, wear mechanisms and monitoring/maintenance requirements are design dependent. |
Vacuum interruption does not necessarily mean an oil-free tap changer. Oil may still provide insulation or other functions in the assembly. Nor does a vacuum design remove the need to inspect the drive, indication, auxiliary circuits and the items specified for that model.
OLTC versus off-circuit tap changer
| Question | OLTC | Off-circuit / de-energized design |
|---|---|---|
| When may the ratio be adjusted? | Under load within the approved operating conditions. | With the transformer de-energized and the applicable safe-work controls in place. |
| What operating role does it serve? | In-service local, remote or suitably regulated tap changes. | An adjusted ratio used during subsequent operation. |
| What should a comparison include? | Regulation need, switching arrangement, drive/control equipment and maintenance. | Whether de-energized adjustment meets the duty and the actual device requirements. |
| What must not be inferred? | On-load capability is not energized-maintenance permission. | Removing the load does not by itself make the transformer de-energized or safe. |
Manufacturers may use DETC, OCTC or other terms. Read the permitted operating condition rather than assuming that “off-load” means opening a load circuit is sufficient. A universal price multiplier, fixed voltage class or transformer size is not an adequate selection rule.
Why can a higher tap position reduce secondary voltage?
First distinguish a position number from effective winding turns and from a controller command to raise the regulated voltage. HV does not always mean the source-fed primary winding. The nameplate, tap table, winding diagram and regulated voltage point establish the actual direction.
For a limited ideal example, assume a fixed 10,000 V applied to winding 1, N1 = 1,000 effective turns and N2 = 40 turns. Ignoring losses and load-dependent voltage drops, V2 = V1 × N2 / N1 gives 400 V. Keeping N2 and the applied voltage unchanged but increasing N1 to 1,050 gives approximately 381 V. Under those assumptions, more effective primary turns produce a lower secondary voltage.
These are illustrative numbers, not a customer transformer, a measured result or a recommended tap setting. They explain why increasing a display number cannot be treated as a universal instruction to increase output voltage. Actual numbering, reversing arrangements and raise/lower logic must be checked against the supplied documents.
How does automatic voltage control decide when to act?
A suitable regulator compares measured voltage with its setpoint and configured bandwidth. If the deviation persists for the defined delay, and the relevant limits and interlocks allow it, the regulator may request a raise or lower tap change. Timer reset behavior, subsequent-step delay and blocking conditions depend on the controller and scheme.
Which ratings and documents are needed for selection?
Coordinate rated through-current and the relevant step voltage with insulation requirements, winding connection, tap arrangement, regulation range and specified duty. Fluid, environment, motor drive, protection, monitoring and maintenance arrangements also belong in the selection file. A catalogue’s maximum current and maximum step voltage cannot be assumed to be available together.
What should operators keep in the equipment record?
Keep the OLTC and motor-drive type/revision, tap table, counter history, control and protection diagrams, and previous maintenance and measurement records together. A regulation problem may also involve the feedback point, control permissions or network conditions. An indication or a single trace does not establish an internal defect or authorize return to service.
The OLTC testing and maintenance guide explains inspection, oil/protection findings and the limits of DRM and other methods. For a transformer maintenance and testing discussion, provide the equipment details, available records and requested scope. Inspection, physical work and measurements should be identified separately in the proposal.
Related Blog Posts
Related Services
Frequently Asked Questions
What is an OLTC, and is LTC the same term?
An OLTC is an on-load tap changer that adjusts transformer ratio while carrying load within its operating limits. LTC often refers to the same function; use the manufacturer’s terminology for an exact product/design distinction. On-load operation does not permit energized maintenance.
What does an OLTC do?
It changes transformer ratio in discrete steps to help move voltage at the regulated point toward its target. Tap range, regulator settings and equipment limits constrain the response. It does not correct every voltage disturbance instantly or completely.
How does an OLTC work?
It selects the next tap and transfers load current through the designed switching arrangement. Transition impedance limits circulating current. Separate selector/diverter and combined selector-switch designs use different arrangements, operated by the applicable motor-drive mechanism.
What is the difference between OLTC and an off-circuit tap changer?
An OLTC is designed for tap changes under load within its permitted conditions. An off-circuit/de-energized changer requires a de-energized transformer and the applicable safe-work controls for adjustment. An unloaded transformer is not necessarily de-energized.
Which transformers use OLTCs?
They may be used in power transformers, some distribution transformers and special industrial applications needing in-service ratio adjustment. Not every transformer has or needs an OLTC; the actual regulation duty and equipment design determine its use.
Are the tap selector and diverter switch the same component?
In a separate arrangement the selector preselects on the branch not carrying load, and the diverter transfers load current. A selector switch combines selection and transfer. One model’s component arrangement is not a description of all OLTCs.
Is vacuum an alternative to resistor-type OLTC technology?
Vacuum describes the current-interruption medium; resistor or reactor describes the transition-current-limiting principle. These are separate design features. A vacuum-interruption assembly may still contain oil and require model-specific inspection and maintenance.
Does a higher position number always increase output voltage?
No. Position numbering, effective turns and a raise-voltage command are different. Check the nameplate, tap table, winding diagram and regulated point. With fixed applied primary voltage, increasing effective primary turns can reduce ideal secondary voltage.
Why does an OLTC need maintenance?
Switching, mechanical movement and design-specific oil/contact conditions can change with use and time. Drive, indication, connections and protection/monitoring equipment also require assessment. The applicable manual and the operation/time/condition history establish the scope and interval.
Can an OLTC be controlled automatically?
Yes, with a suitable drive, regulator and control scheme. The regulator may command a tap change when bandwidth, delay, equipment permissions and limits allow it. Actual settings and raise/lower direction must be verified against the installation scheme and device instructions.
